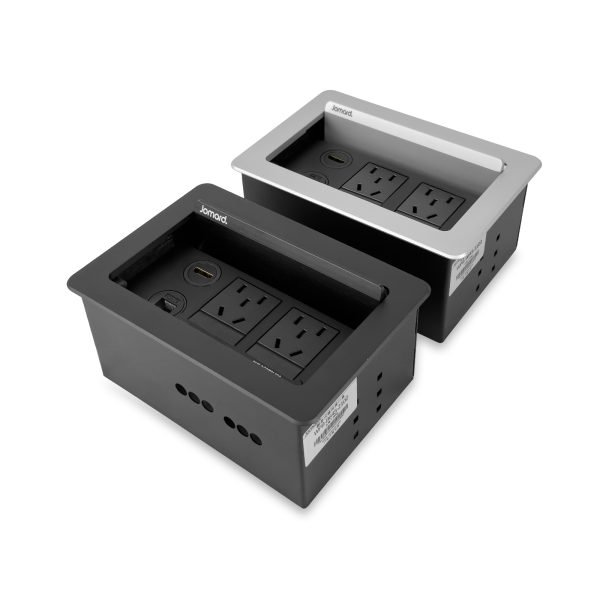

翻盖媒体接口盒 WPB-B/S645-2100
产品描述
Jomard Multimedia Connectivity Box is an improved and developed version based on the original product, which better solves the problems encountered by users, and enhances reliability, suitability, and convenience to use.

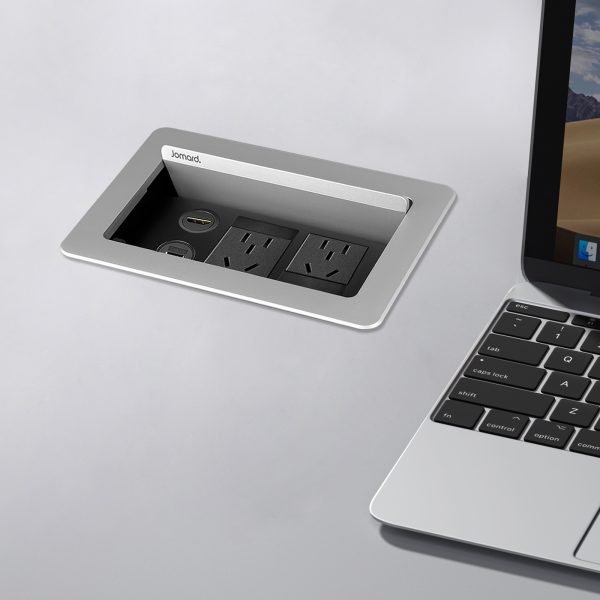

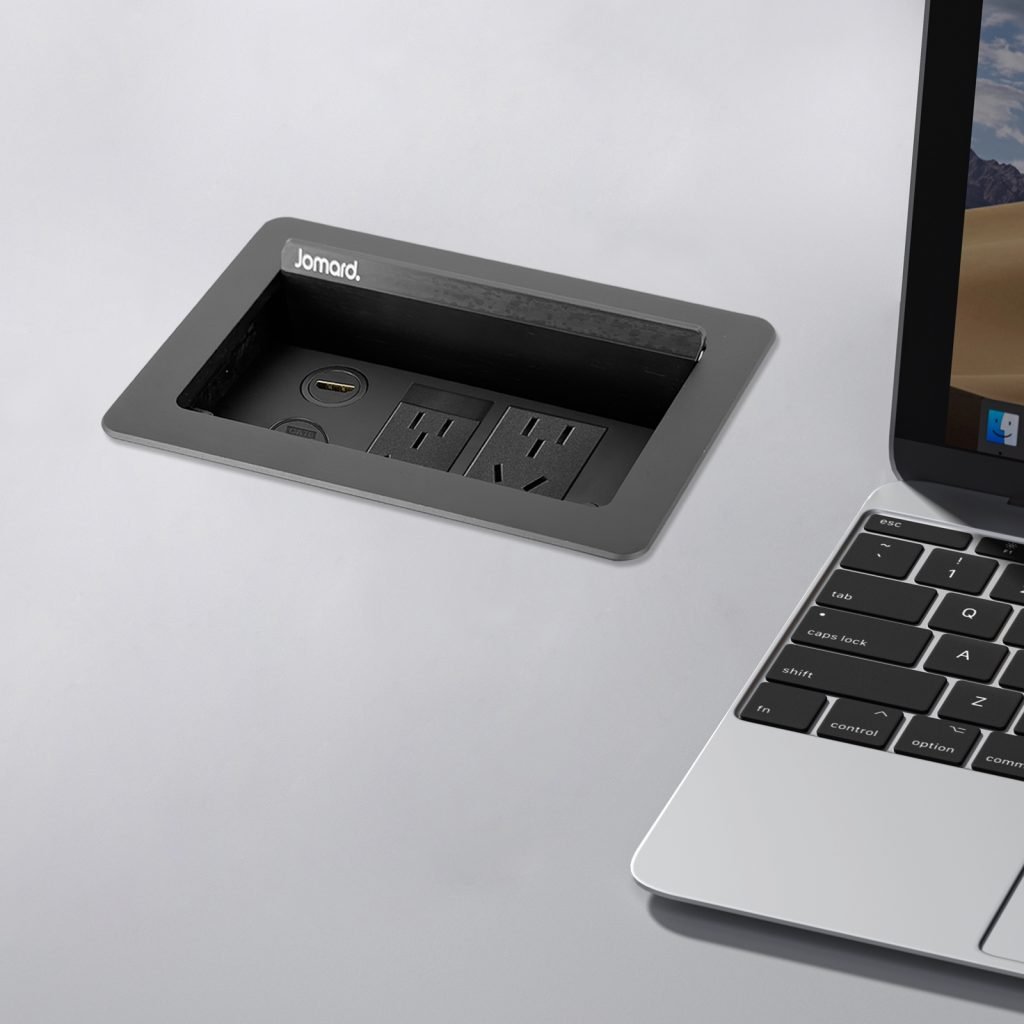

It can be concealed in a desktop installation and features modular combinations, effectively addressing the simple, organized, and aesthetic connection of various peripheral cables.

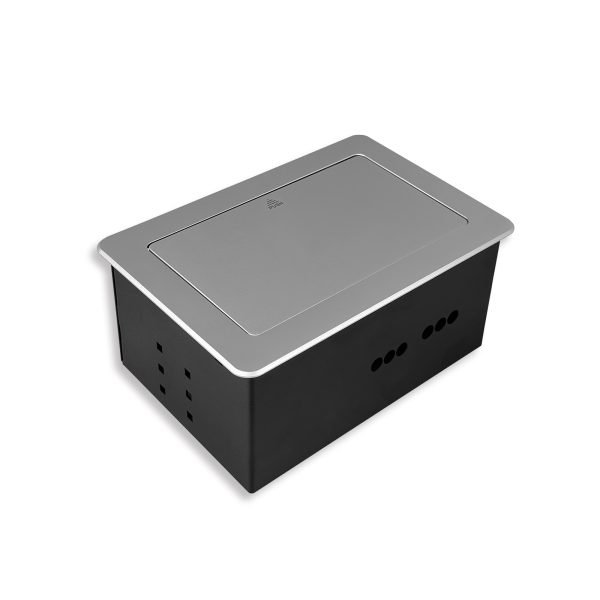

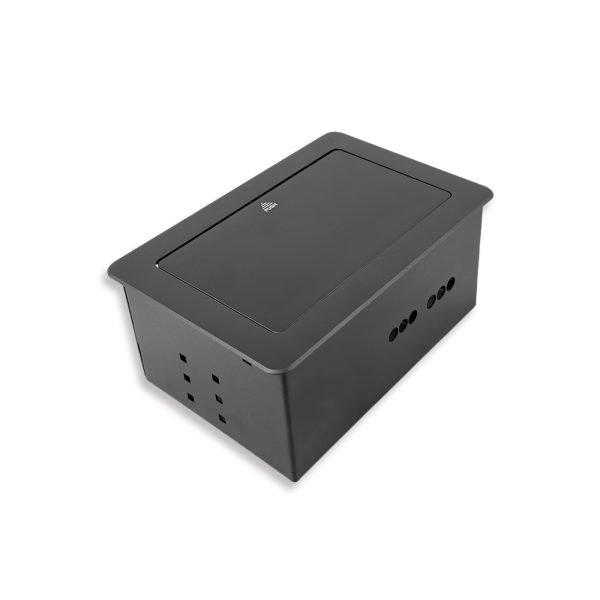

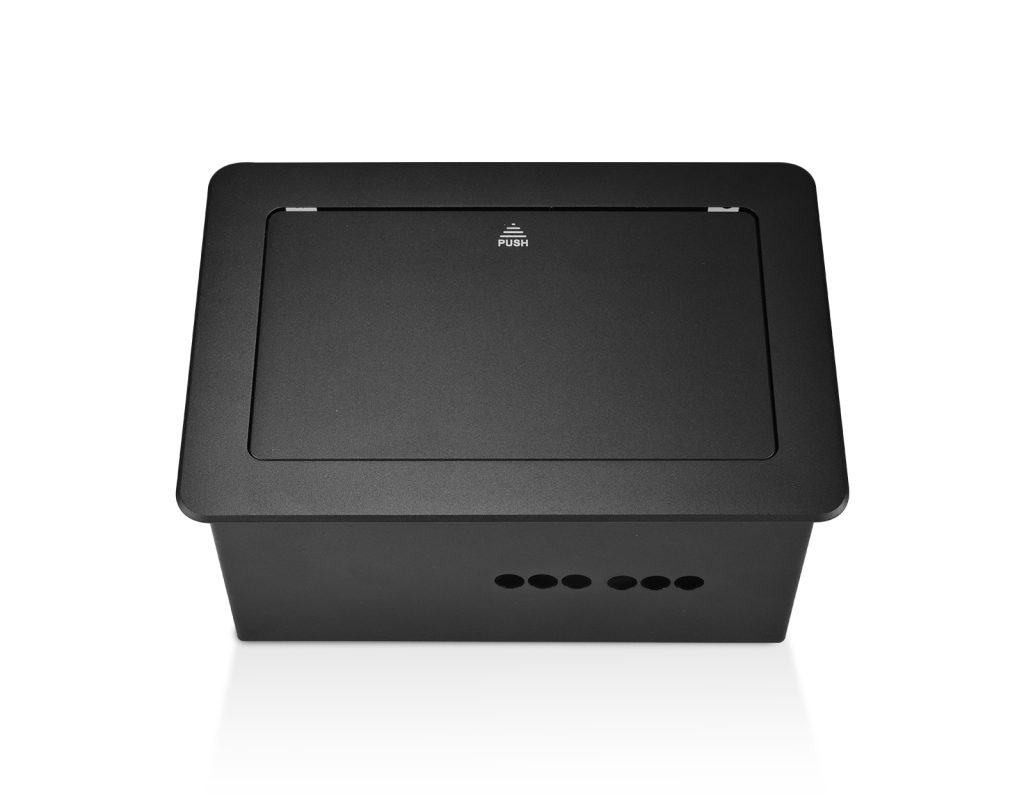

The flip type sunken and concealed decorative panel is adopted to maintain a sleek and tidy appearance in use.

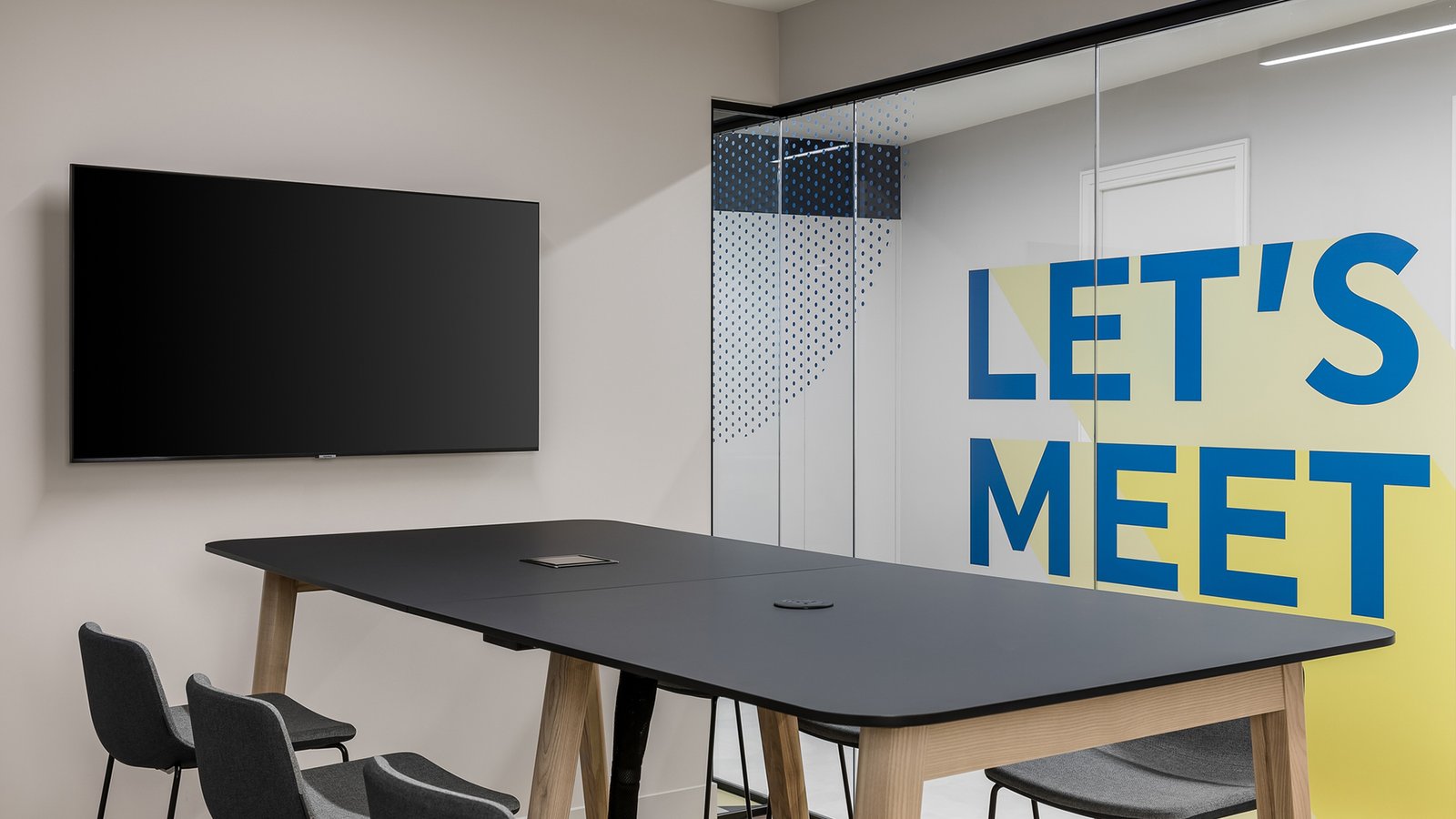

It is suitable for various conference systems, academic exchanges, information management, network offices and various exhibition presentations.
凹陷式盖板的设计使其在打开后可隐藏于盒内，不再占用桌面空间，也不会遮挡视线。
超薄盖板采用精致铝合金一体成型设计。盖板表面采用阳极氧化工艺，美观且耐磨。黑色哑光处理可防止反光影响视线以及会议摄像机的拍摄。

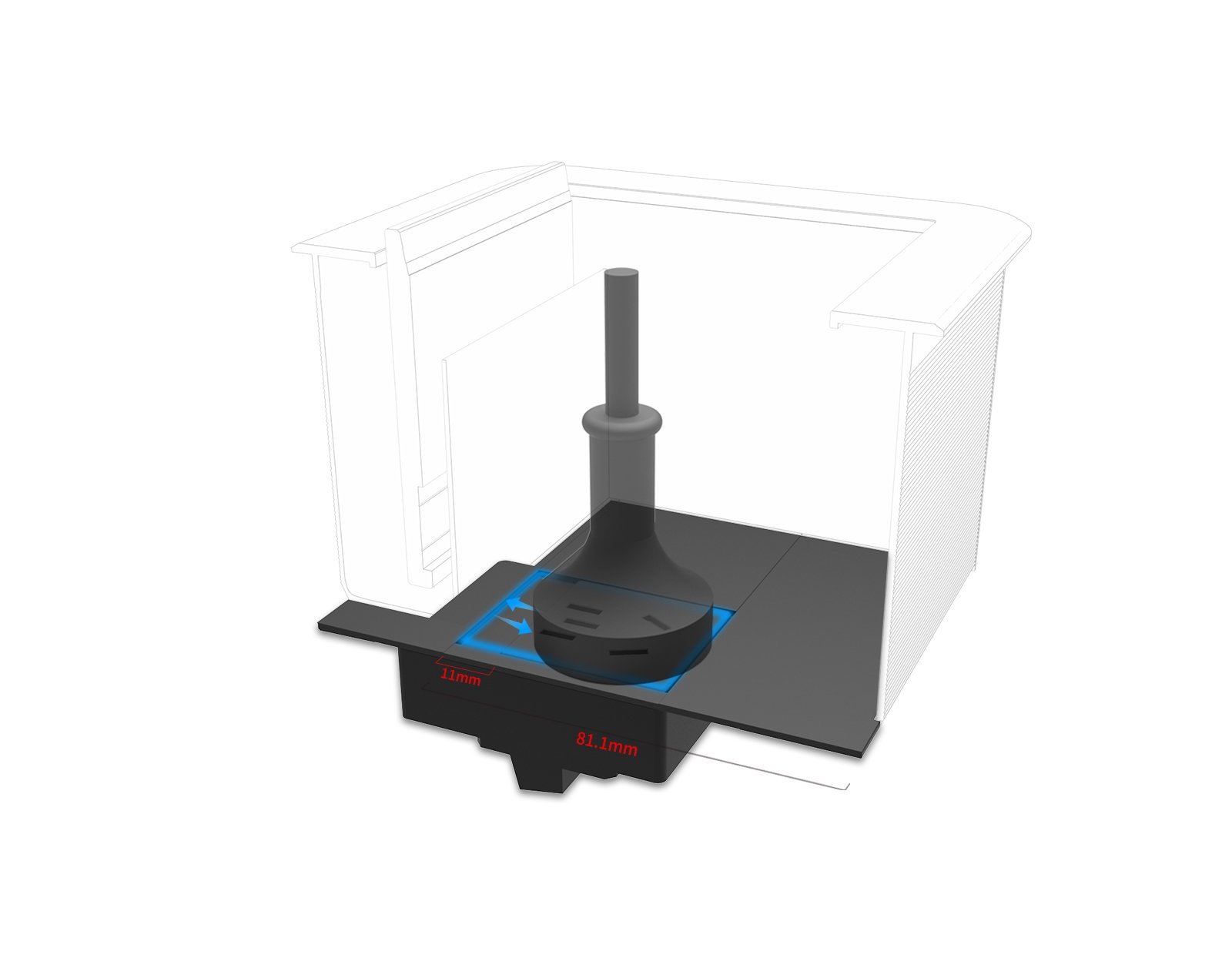

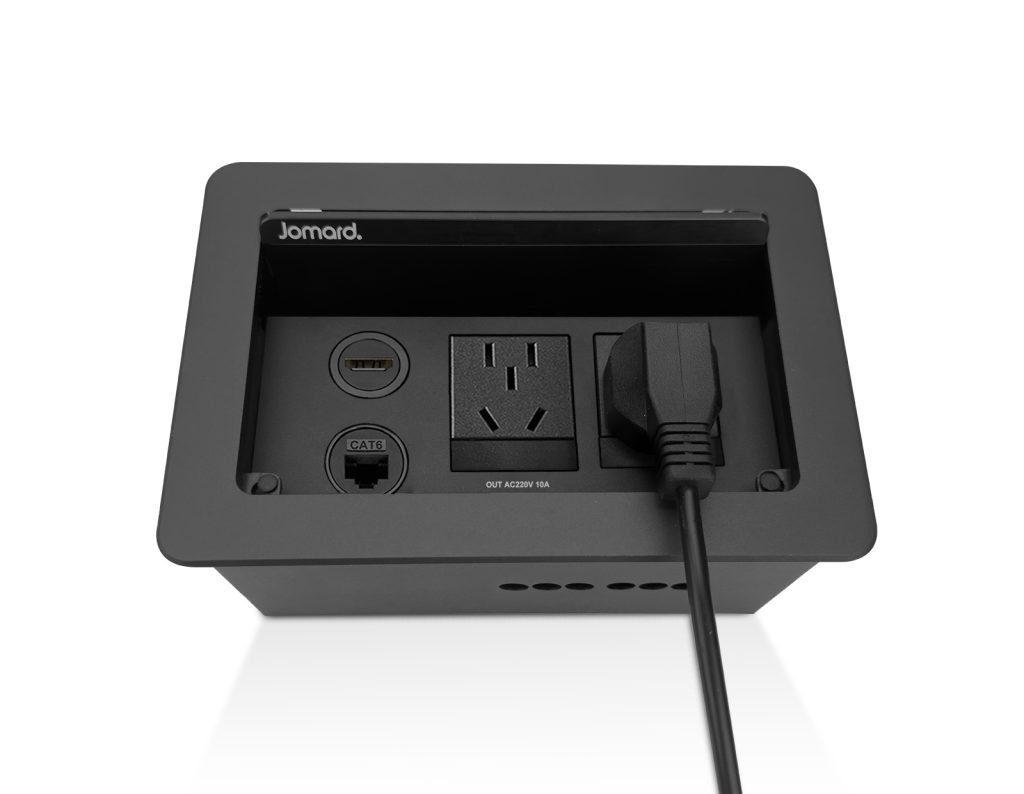

可滑动式电源
最大可滑动距离约11mm;
可容纳80mmx43mm尺寸的电源适配器(含线尾);
兼容大部分常见的AC电源插头;
无需借用电源插座转换器，更容易使用电源插头。

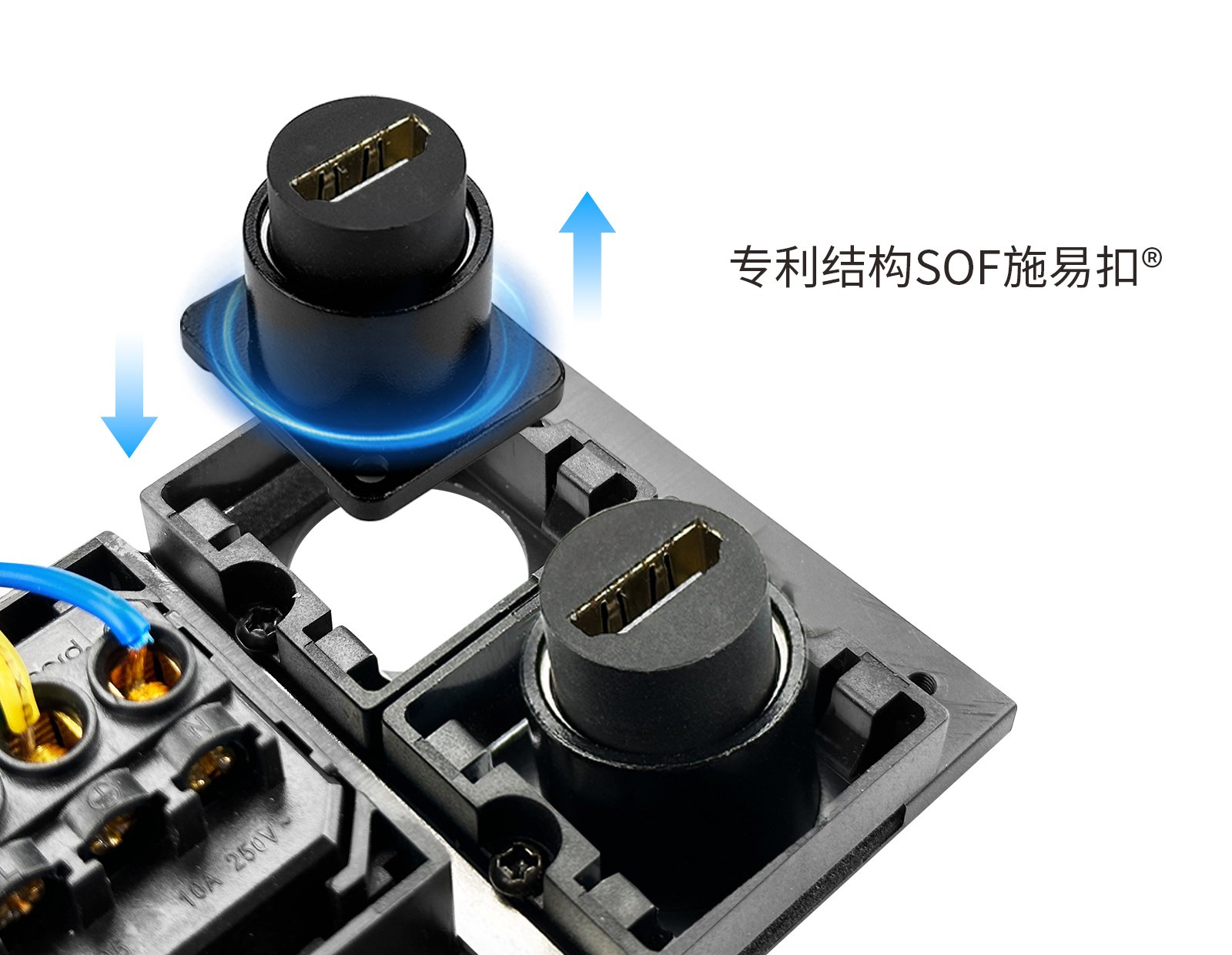

专利结构SOF施易扣
由Jomard根据D型模块的特点，而自主设计的一种快速安装D型模块的坞座。它能使D型模块快速卡装并固定在专用坞座，很好的解决了现场大量安装D型模块时，需要使用螺丝固定的局面，解决了施工不方便快捷，且需要大量的人工和时间成本。

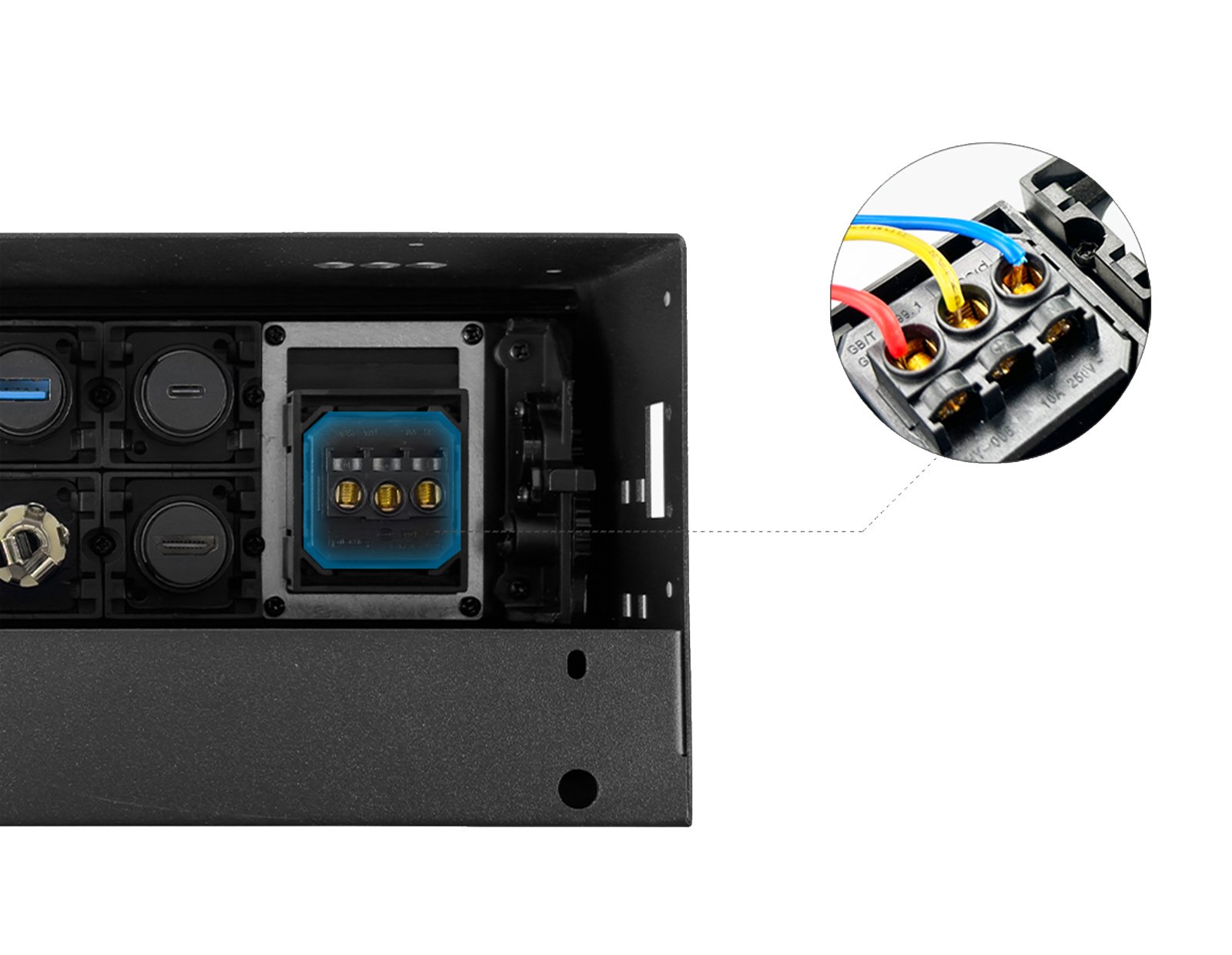

盒体带有接线工艺孔
方便接入电源。

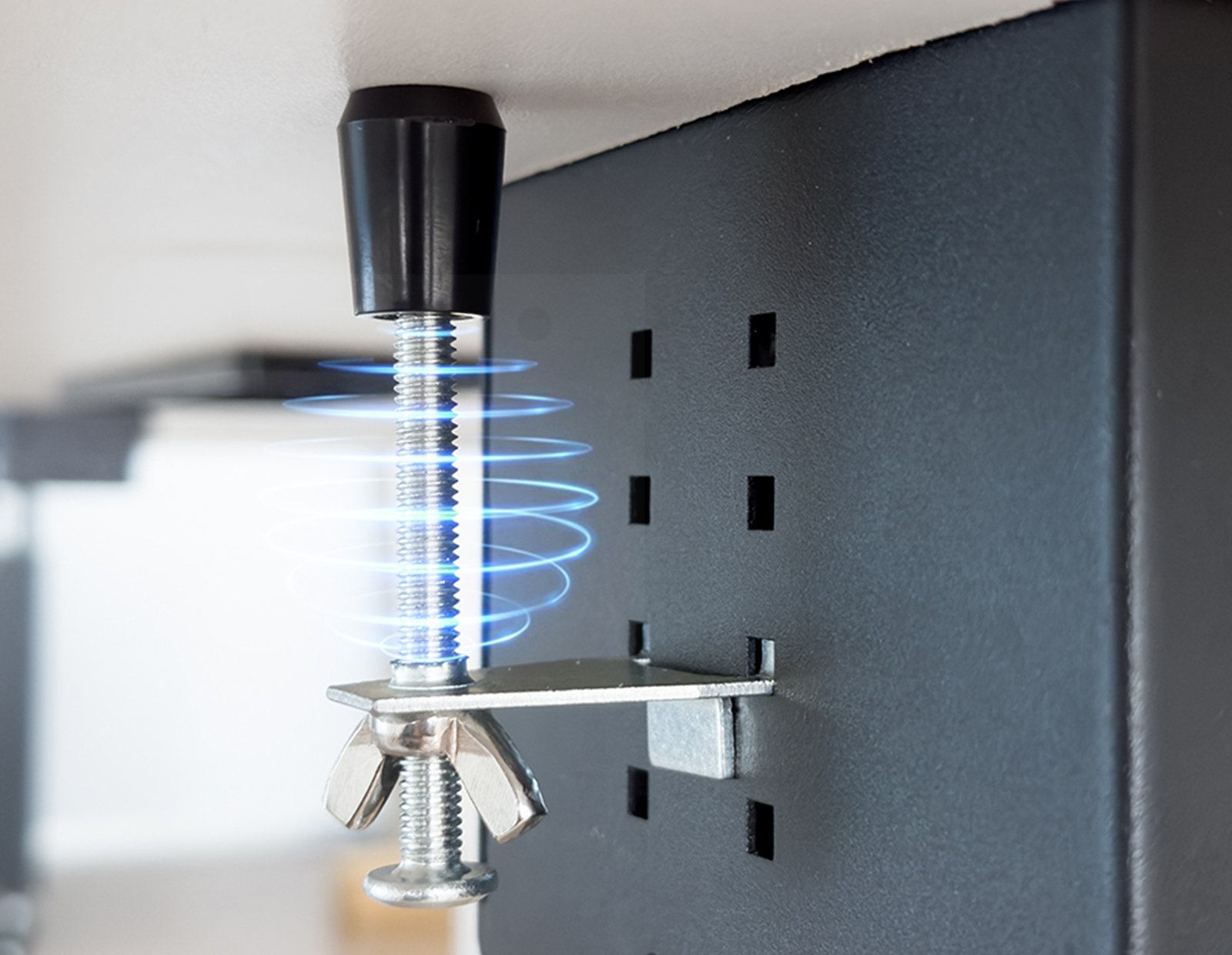

侧装固定夹将盒体固定在家具
适用桌面厚度≤65 毫米；
先用十字螺丝刀向上拧紧 M6 家具螺丝，然后用手拧紧蝶形螺母。
参数

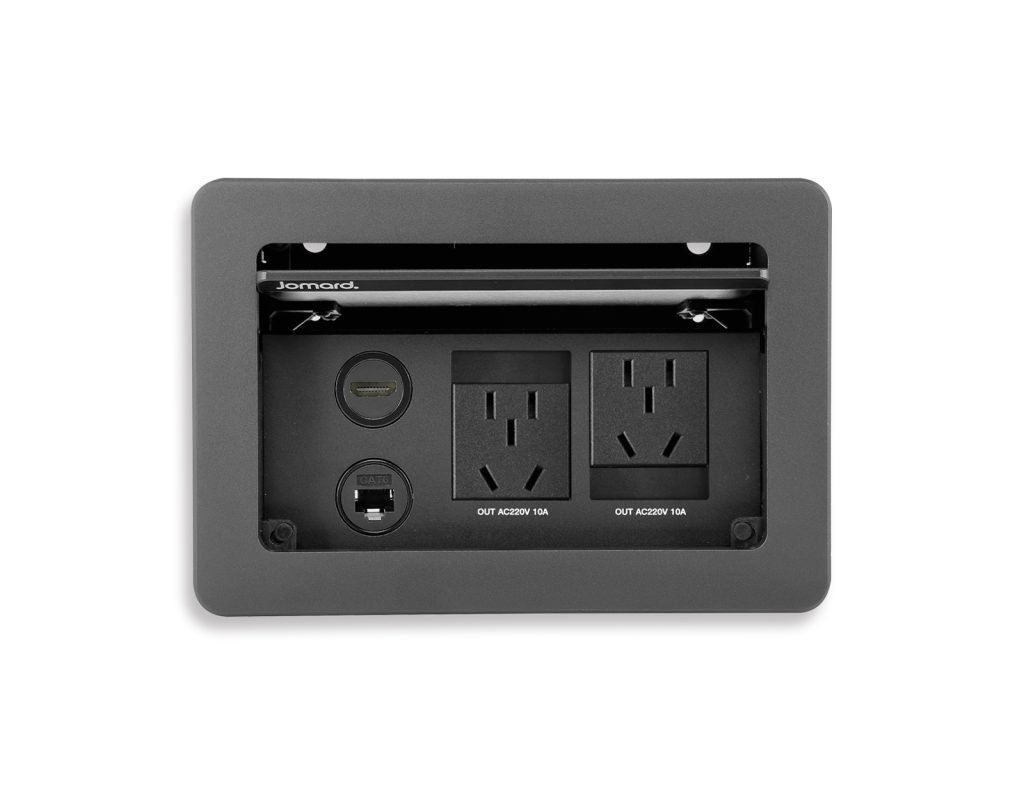

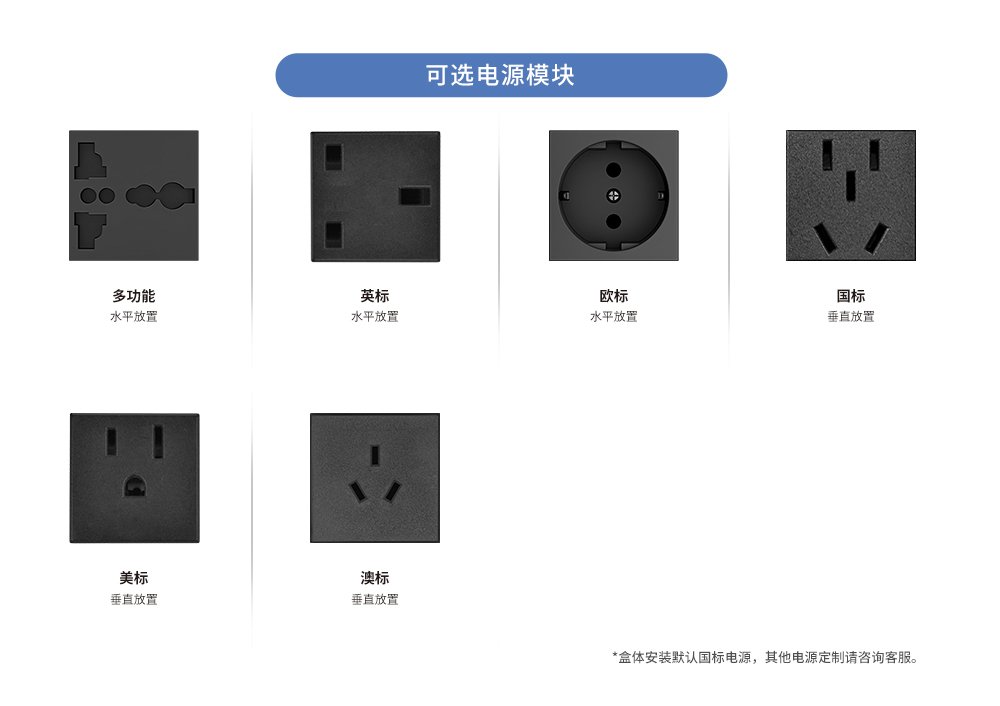

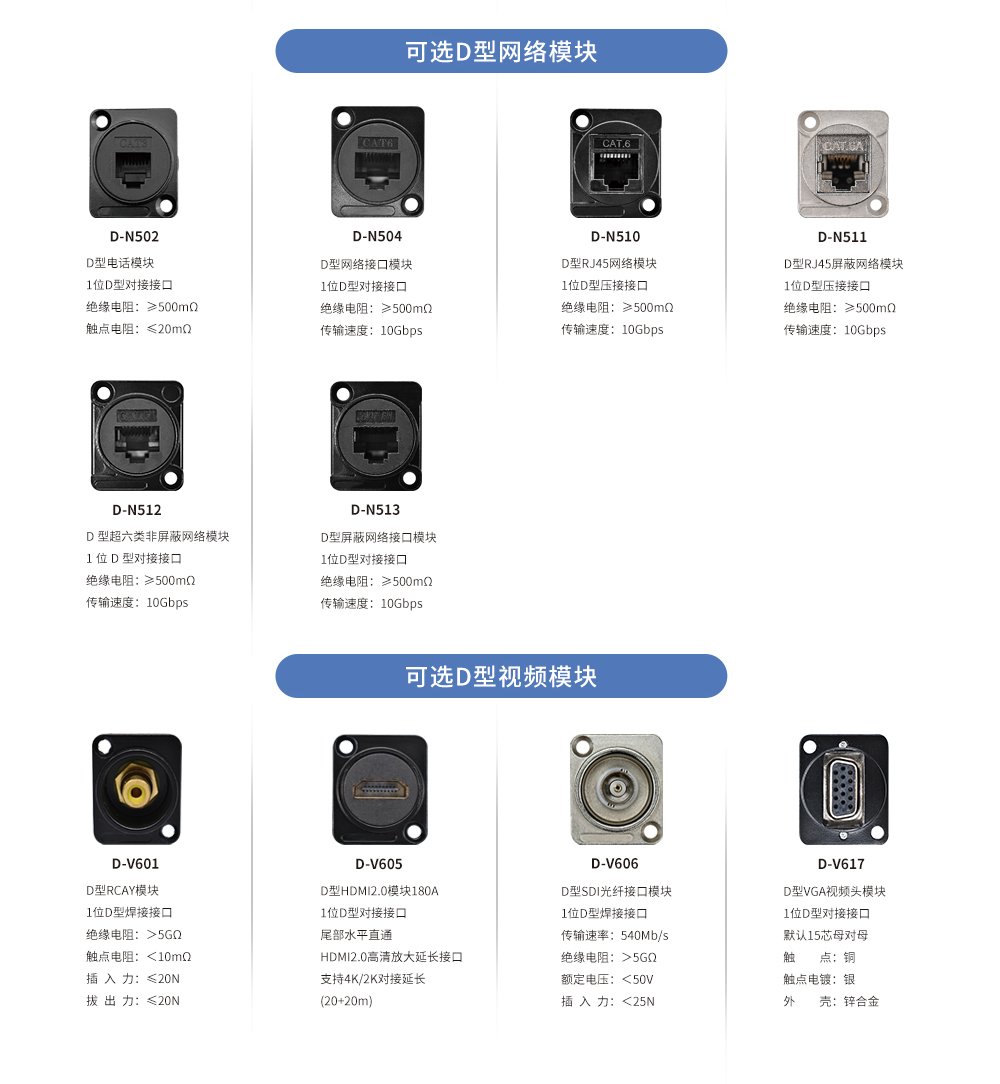

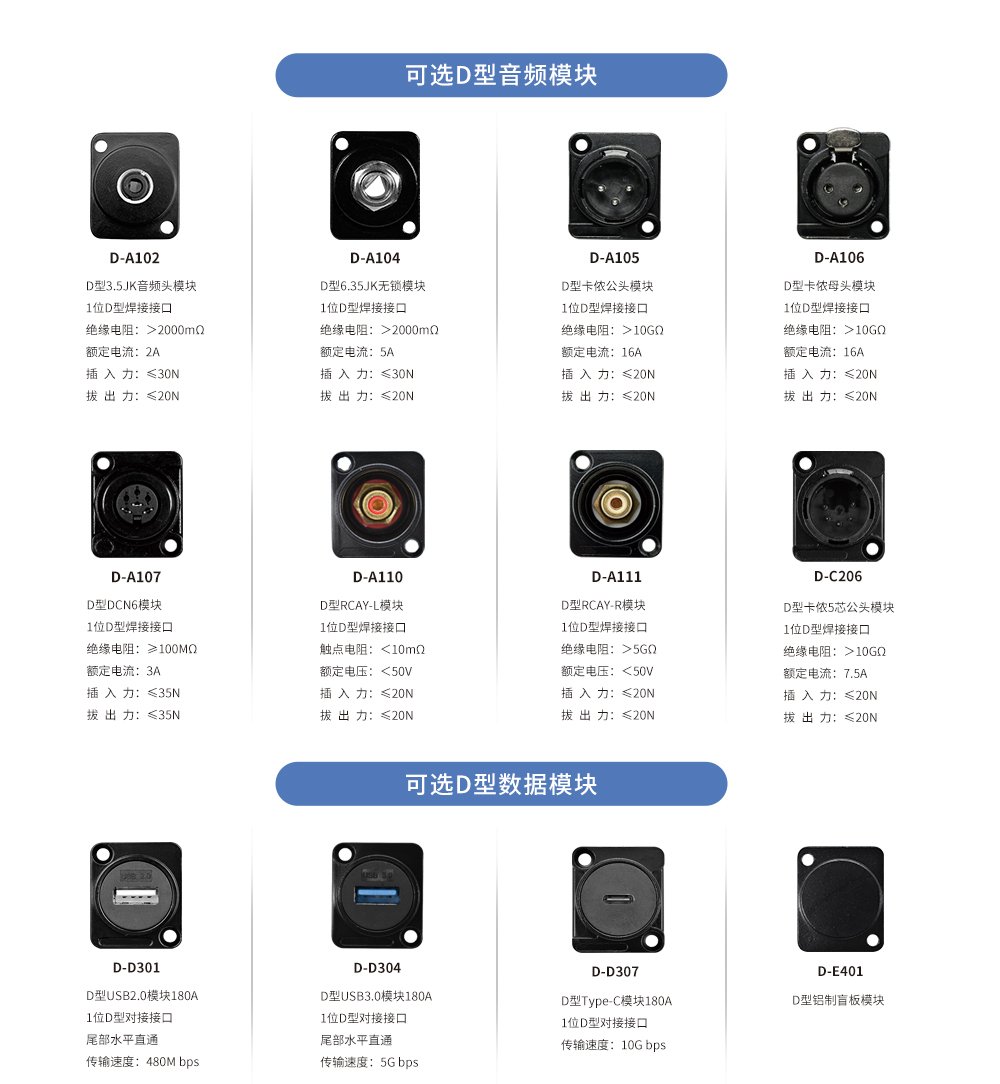

| 配置 | 两位5孔国标AC插座，两位可选D型接口模块 |
| 箱体尺寸 | 189×130×90mm |
| 面板尺寸 | 189×130mm |
| 开孔尺寸 | 182×122mm |
| 适合桌面厚度 | ≤42mm |
| 净重 | 1.07kg |
| 毛重 | 1.34kg |
